Powerbox Competition SHV

SHV stands for Super High Voltage, and - as the term indicates - The Competition SHV operates with significantly higher voltages than previous 8.4V systems. The unit can cope with input voltages of up to 35V, which is then passed on to the servos in a redundant arrangement.s!

Features

SHV technology: up to 35V input voltage
40A max. current load for all SHV servo outputs
regulated 8.4V / 10A for receivers, peripherals, and four servos
22 channels

optional UAV version
high-performance battery backer with high continuous load capacity
2.4” TFT screen, legible in sunlight
Bi-lingual menu system
consistent duplication of all power electronics
redundant electronic switch
Servo matching for all 22 outputs
auto matching function
two independent door sequencers with Setup Assistant
the latest integrated iGyro technology, using the iGyroSAT as a gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
individual gain control for all twelve gyro outputs
special regulatory algorithm for fixed-wing models
The system detects all transmitter mixers
four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Graphic menu diagrams ensure ultra-simple programming
fast basic setup procedure using the sophisticated Assistant
optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum, SRXL2, Multiplex M-Link and Graupner HoTT
Transmission of battery, receiver and GPS* data
virtually all features can be controlled from PowerBox and Jeti transmitters
selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
latest 32-bit microprocessor for precise, high-speed signal processing
high-performance machined heat sink for optimized heat diffusion
machined, anodized aluminum switch and screen case
compact dimensions

Technical Data

Operating voltage	10,0 V - 35,0 V
Power supply	3-8s LiPo or Lilon
Current drain Power-on state	170 mA by 20V
Current drain Standby	40 µA
Maximum load current	2x20A (<30s 2x 40A)
Output voltage	SHV and 8.0V
Signal input	serial
Supported RC systems	PowerBox, Futaba, Jeti, Spektrum, Multiplex, Graup

Receiver redundancy	SR2
Channels	26
Servo sockets	22
Programmable servo outputs	22
Servo signal resolution	0,5 µs
Signal frame rate	10 ms, 12 ms, 14 ms, 16 ms, 18 ms
Gyro regulation	Heading- and normal mode
Gyro sensor type	external iGyro SAT
Number of sensor axes	12
Screen	TFT-Display 320x240 pixels
Integral door sequencer	yes
Supported telemetry systems	P²BUS, S.BUS2, EX-BUS, SRXL2, M-Link, Hott, DMSS
Dimensions	118 x 71 x 19 mm
Weight	137g
Weight Sensor Switch	15g
Weight of LCD screen	34g
Temperature range	-30 °C bis +85 °C

Set contents

PowerBox Competition SHV
TFT Display
SensorSwitch
2 patch-leads
4 rubber grommets and brass spacer sleeves
8 retaining screws
Operating instructions in German and English

Product Description

The Competition SHV is the latest member of the PowerBox product family and has been developed to take into account the requirements of the latest generation of servos, with their ever-rising power and speed. SHV stands for Super High Voltage, and - as the term indicates - the Competition SHV operates with significantly higher voltages than previous 8.4V systems. The unit can cope with input voltages of up to 35V, which is then passed on to the servos in a redundant arrangement. The advantage is obvious: for a given servo power the current carried by the servo cable is correspondingly reduced. For example, a servo drawing a current of 6A using 8.4V technology will only draw 2A using 25.2V technology and a 6S power supply.

The lower current drain results in the following scenarios:

For a given conductor cross-section, the lower current in the servo cable reduces the voltage drop to the servo. This in turn means more constant servo output power, and the servos operate with consistent torque and speed.
Much higher servo performance is possible since currents increase by a lower factor.
For a given servo output it is permissible to use cable of reduced cross-section. in the case of large models, this can result in a significant weight-saving.
Power supply batteries of significantly lower capacity and nominal current can safely be employed.

The unit is fitted with two redundant DC/DC converters for the two receivers, gyro, additional telemetry sensors, and up to four servos; they generate a regulated voltage of 8.4V and

can cope with loads of up to 10A.

In terms of software, the Competition SHV is based on the proven Competition SR2 and features all the usual PowerBox functions: 12-axis iGyro with optional speed compensation, servo-matching with Auto-Match function, door sequencer, input and output mapping, and much more. The whole system can be set up using the high-resolution color screen, or from the transmitter if you are using PowerBox or Jeti equipment.

The UAV version operates using modified software: in this variant, RX1 serves as “Master”, using channel 16 to switch between inputs RX1 and RX2. This can be used, for example, to switch between a conventional RC system and a Flight Controller. The Flight Controller is also powered by the Competition SHV.

Downloads

Operating instructions

PowerBox Competition SHV (PDF)

show more language versions

POWERBOX SYSTEMS

Price

Collections

Powerbox Competition SHV

Cable set Premium™ MAXI "one4two"

Cable set Premium™ MAXI "one4three"

PowerBox Pitot tube "Professional"

PowerBox CORE/ATOM Replacement battery

Cable set Premium™ MAXI "one4one"

Power Box TFT Display for Powerbox Competition SR2 and Royal SR2

GPS V

PowerBox iESC 160.HV

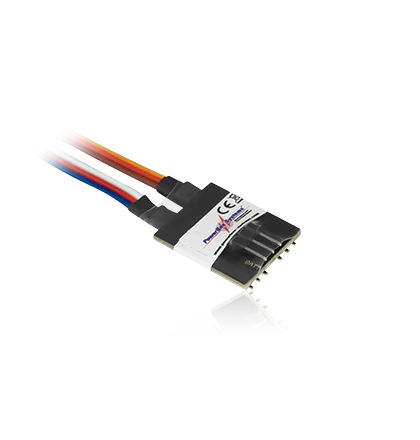

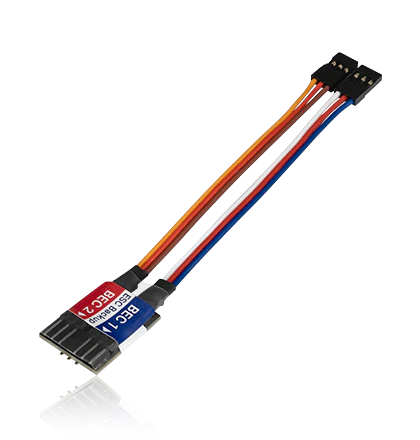

PowerBox ESC Backup (DNRS)

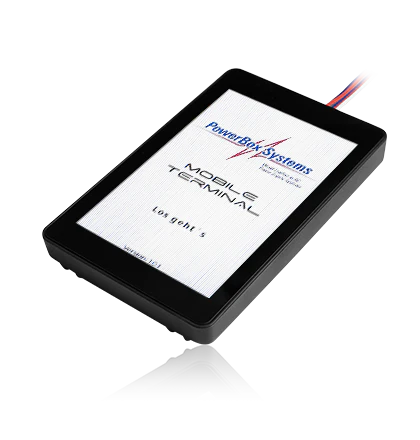

Mobile Terminal

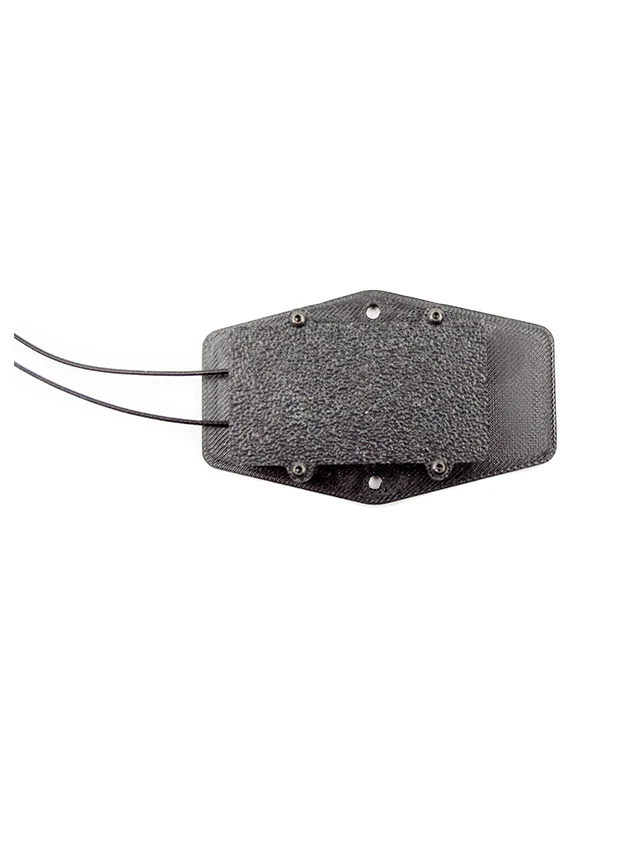

PowerBox Flush Mount for PBR-26D
