PowerBoxĀ PBR-12X
12-Channel Expander - Ultra-compact servo distributor with electronic switch and high-current power supply
Features
- 12 channels
- Electronic switch
- MR30 high-current input
- Two serial inputs for the receiving system
- Automatic RC system detection
- Telemetry data for PowerBox PĀ²BUS, Jeti Ex-BUS, Spektrum and Futaba S.BUS2
- Transfer of voltage, a current, capacity, lost frames and holds
- User-variable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
- All features can be controlled from PowerBox and Jeti transmitters
- All systems can control the unit via BlueCom or PowerBox-USB
- Servo feedback current suppression
- Machined and anodized aluminum switch case
- Space-saving design
- Ultra-low weight
-Ā Ā Ā Ā Ā Ā
|
|
Technical Data
| Operating voltage |
4.0V - 9.0V |
| Power supply |
2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current drain Power-on state |
25mA |
| Current drain Standby |
20Ī¼A |
| Maximum load current |
Duration 12A (< 30s: 20A) |
| Supported RC systems |
Core PĀ²BUS, Jeti Ex-Bus, Spektrum SRXL2, Futaba S. |
| Receiver redundancy |
SRS |
| Channels |
26 |
| Servo sockets |
12 |
| Servo signal resolution |
0,5Ī¼s |
| Signal frame rate |
10ms, 12ms, 14ms, 16ms, 18ms |
| Supported telemetry systems |
Core PĀ²BUS, Jeti Ex-Bus, Spektrum SRXL2, Futaba S. |
| Dimensions |
22 x 23 x 42 mm |
| Weight |
15g |
| Weight Sensor Switch |
6g |
| Temperature range |
-30Ā°C bis +85Ā°C |
|
|
|
|
|
Product description
|

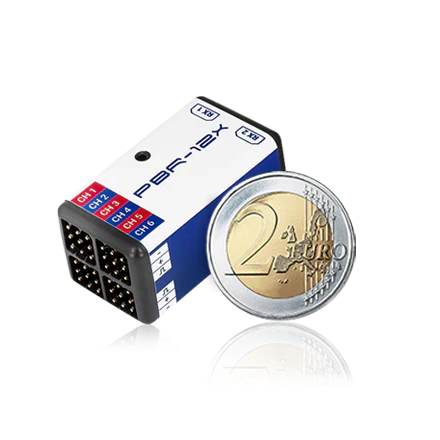

TheĀ PBR-12XĀ is ideal for use in any model where space is limited, but where a large number of channels is required. The square arrangement of the servo sockets allows theĀ PBR-12XĀ to fit even in very narrow fuselages, such as those of, F5J- and F3B-gliders.

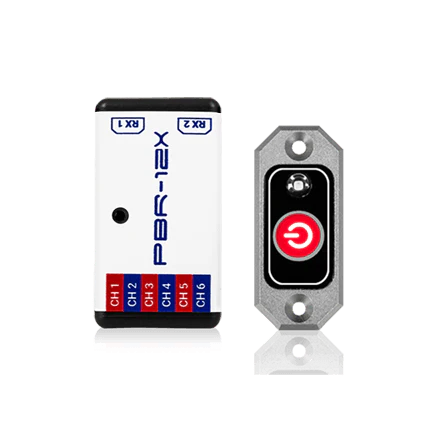

The integral electronic switch is operated using our MicroSwitch. If there is no space for this, theĀ PBR-12XĀ can be activated simply by plugging in or disconnecting the battery, as it stores the last switched state.

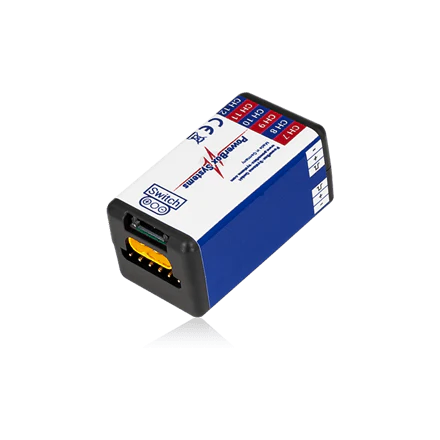

The unit features an integral high-current input with a compact MR30 connector in order to cope reliably with the current drain of twelve servos. An MR30 to MPX adapter is included in the set.Ā

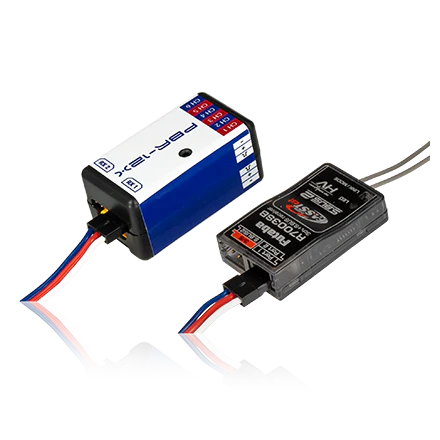

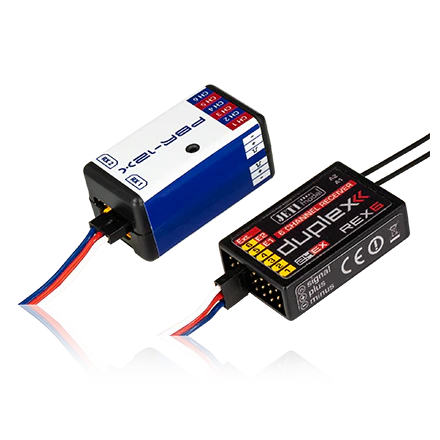

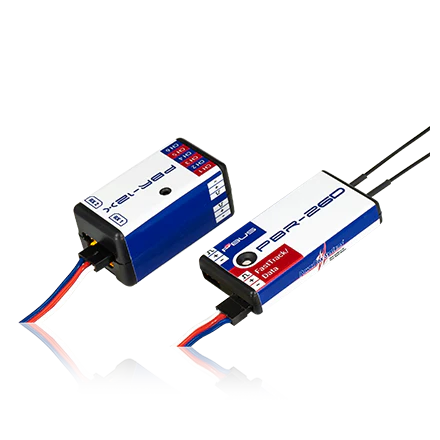

Any receiver with a bus output can be used as the receiving component. The unit automatically detects the bus system to which it is connected, which means that no set-up work is required apart from setting the fail-safe positions. Two receivers can be connected to form the basis for a redundant receiving system. If theĀ PBR-12XĀ detects lost data packets from the first receiver, they are replaced with the data from the second receiver; there is no loss of data.
|
|
