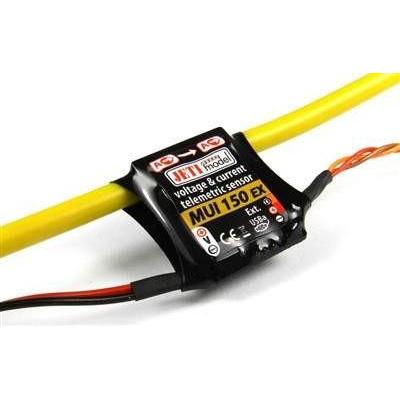

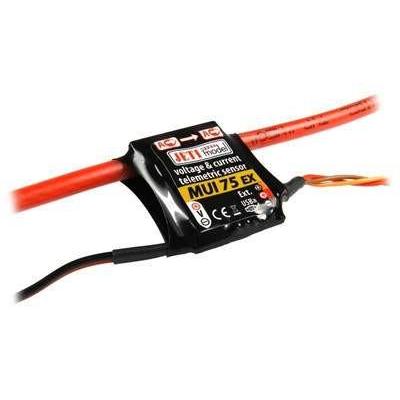

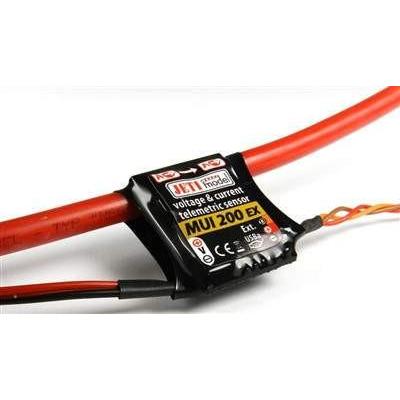

Available in five amperage ranges, the MUI EX sensors measure voltage (U), current (I) and consumed battery capacity of the flight batteries in your model. Through the Duplex 2.4GHz system and JetiBox Profi or Jeti Transmitter you can monitor your flight battery performance in real time. The MUI EX sensors allow you to program alarms for low voltage, high current and capacity used.

Through the Duplex 2.4GHz system and either a JetiBox Profi or Jeti Transmitter you can monitor your data and alarm conditions in real time.

More information (links):
* Instruction Manual (.pdf)

Measures Voltage: 0 to 60V
Measures Amperage: 0 to 30A/50A/75A/150A/200A
Operational Voltage: 3.5V to 8.4V
Dimensions MUI 30: 20mm x 16.5mm x 5mm
Dimensions MUI 50/75: 27mm x 19mm x 11mm
Dimensions MUI 150/200: 29mm x 19mm x 11mm
Weight: 10g, 19g, 21g, 25g, 30g
Alarms: Programmable with JetiBox, JetiBox Mini and JetiBox Profi





Flash Video:
