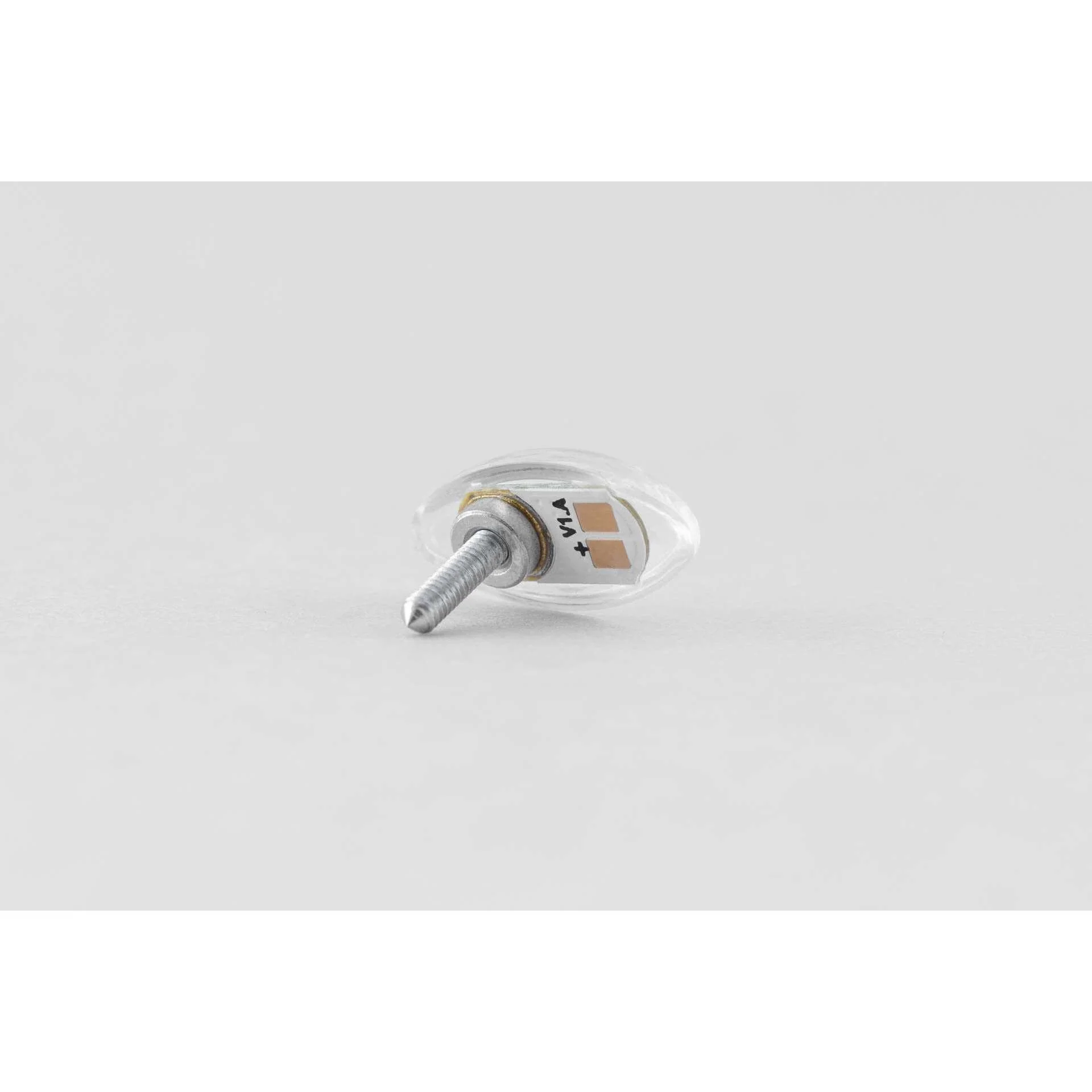

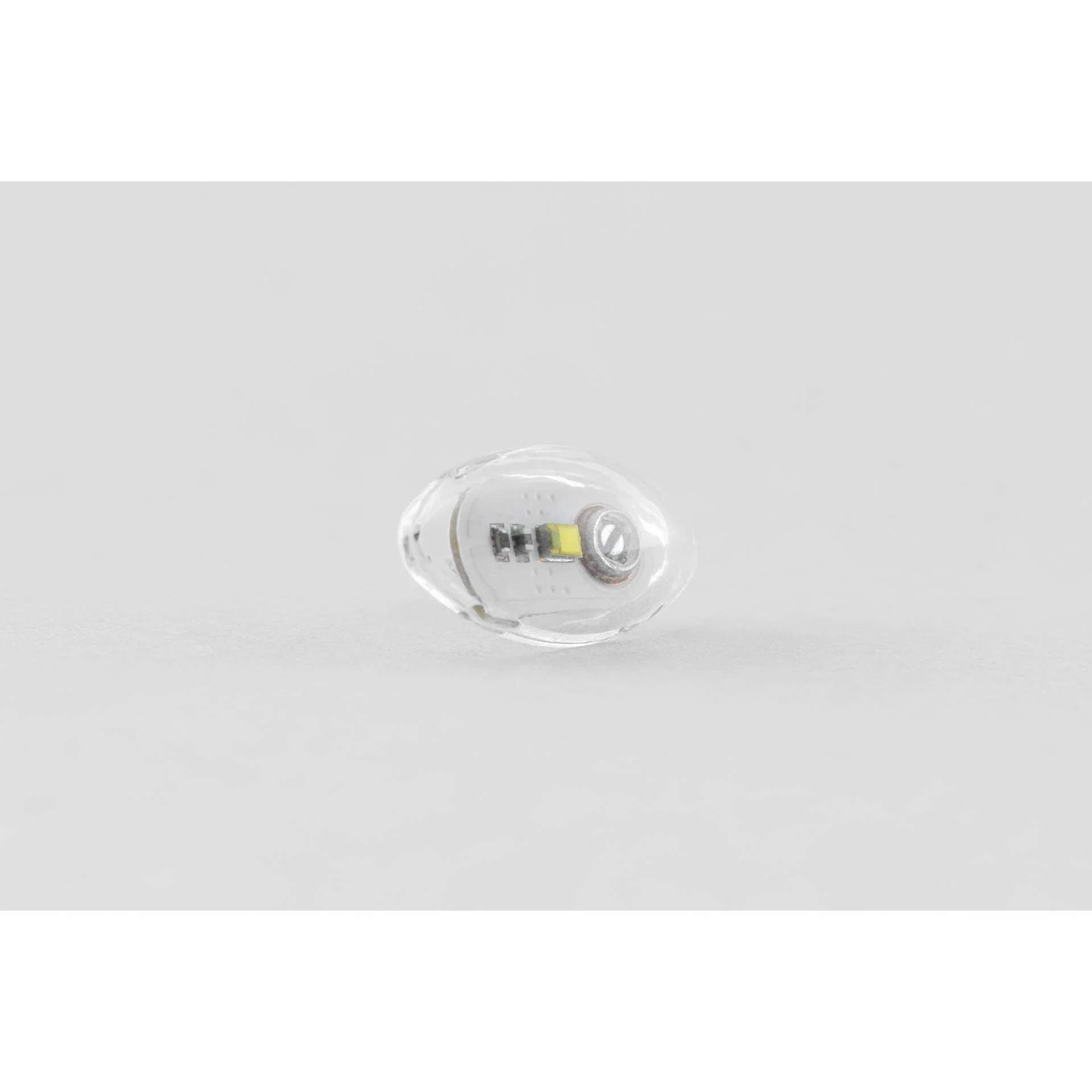

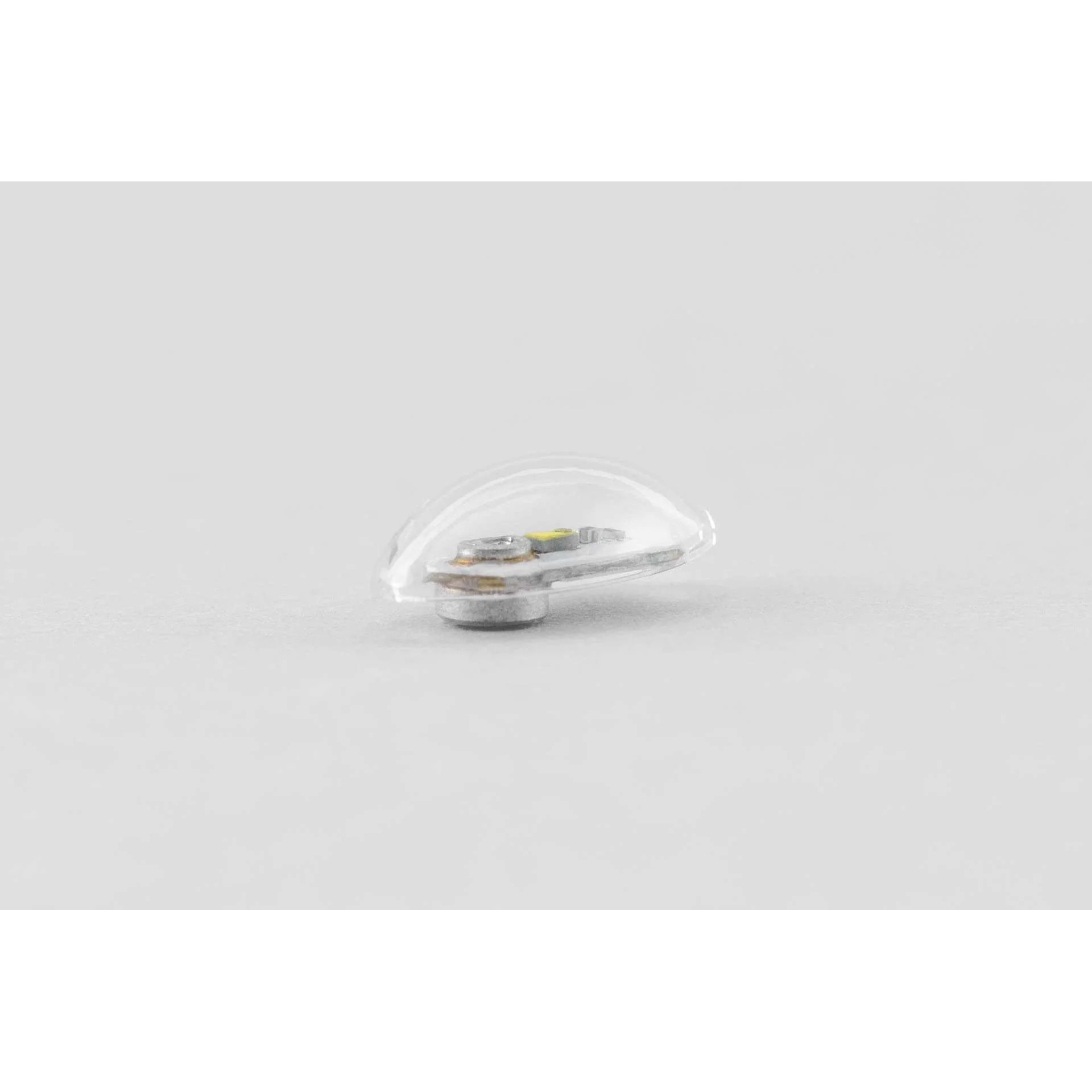

Innoflyer Light module Sina 16mm
Innoflyer Light module Sina 16mm
Product description and features
Round light module in white, green or red. For used as position or anti-collision lighting.
variant Description
- Variant White: For use as an example as position light/tail light or as collision warning light (strobe) in the surface peaks.
- Variant Green: For use as an example as position light in the surface peak on the starboard side (right).
- Variant Red: For use as an example as position light in the surface peak on the port side (left) or as collision warning light (beacon) on the Tail or on the Fuselage.
Connection
The light module can be connected directly to an SLC (Smart Light Channel) output of the Light Driver 5.0 light control (see accessories). There are no soldering and no series resistors necessary.
Innoflyer light module Sina 16mm (Dimensions and Connection Drawing).
|
Intelligent lighting control
- Plug & Play type recognition: The headlamp is automatically detected by the Light Driver 5.0 light control. The light control regulates the luminosity and thus the heat development according to the thermal properties of the headlight housing.
- MLT technology (Maximum Light Tracking): Optionally, the headlamp can be operated with the full light output. An integrated thermal sensor enables the Light Driver 5.0 light control to automatically regulate the light output with high heat generation.

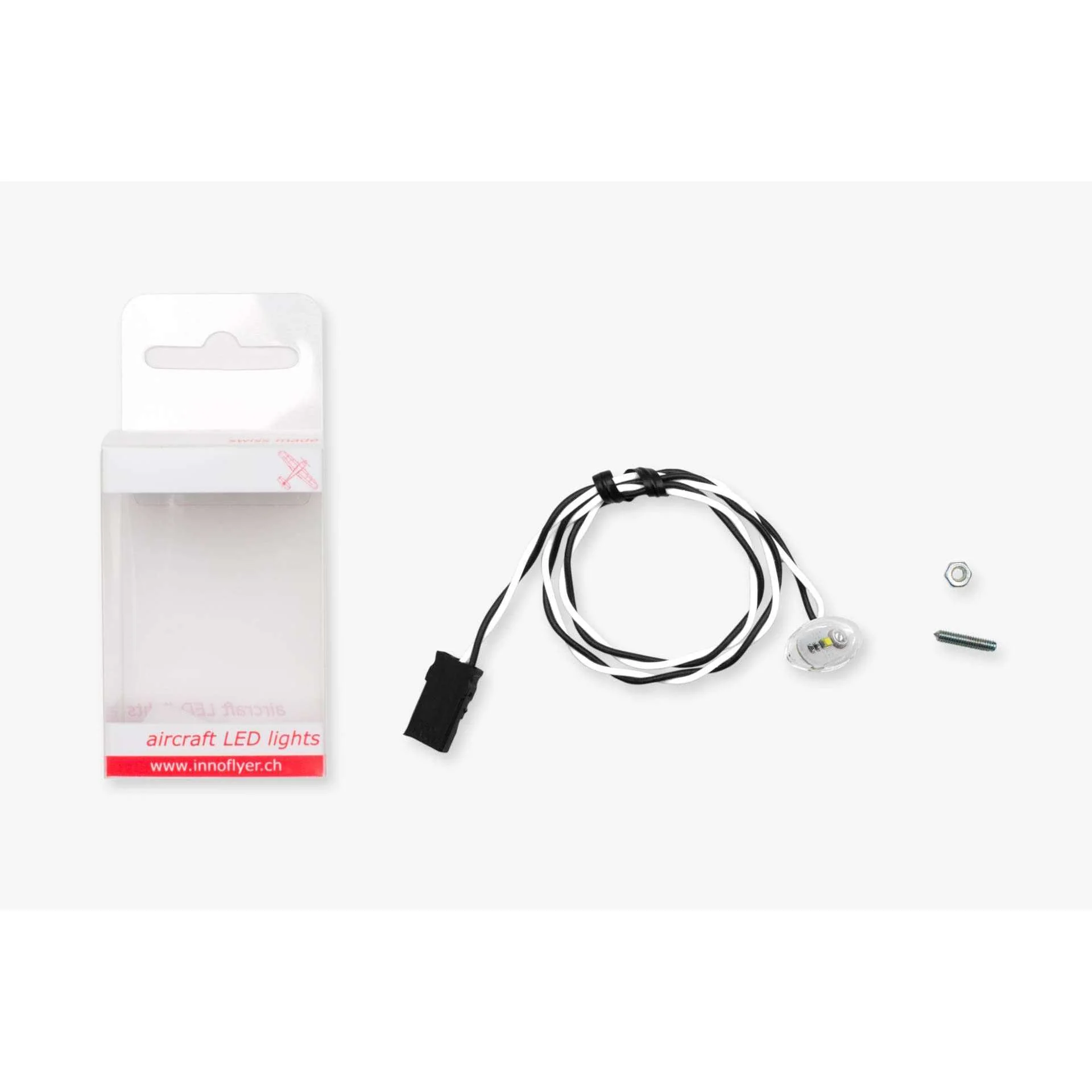

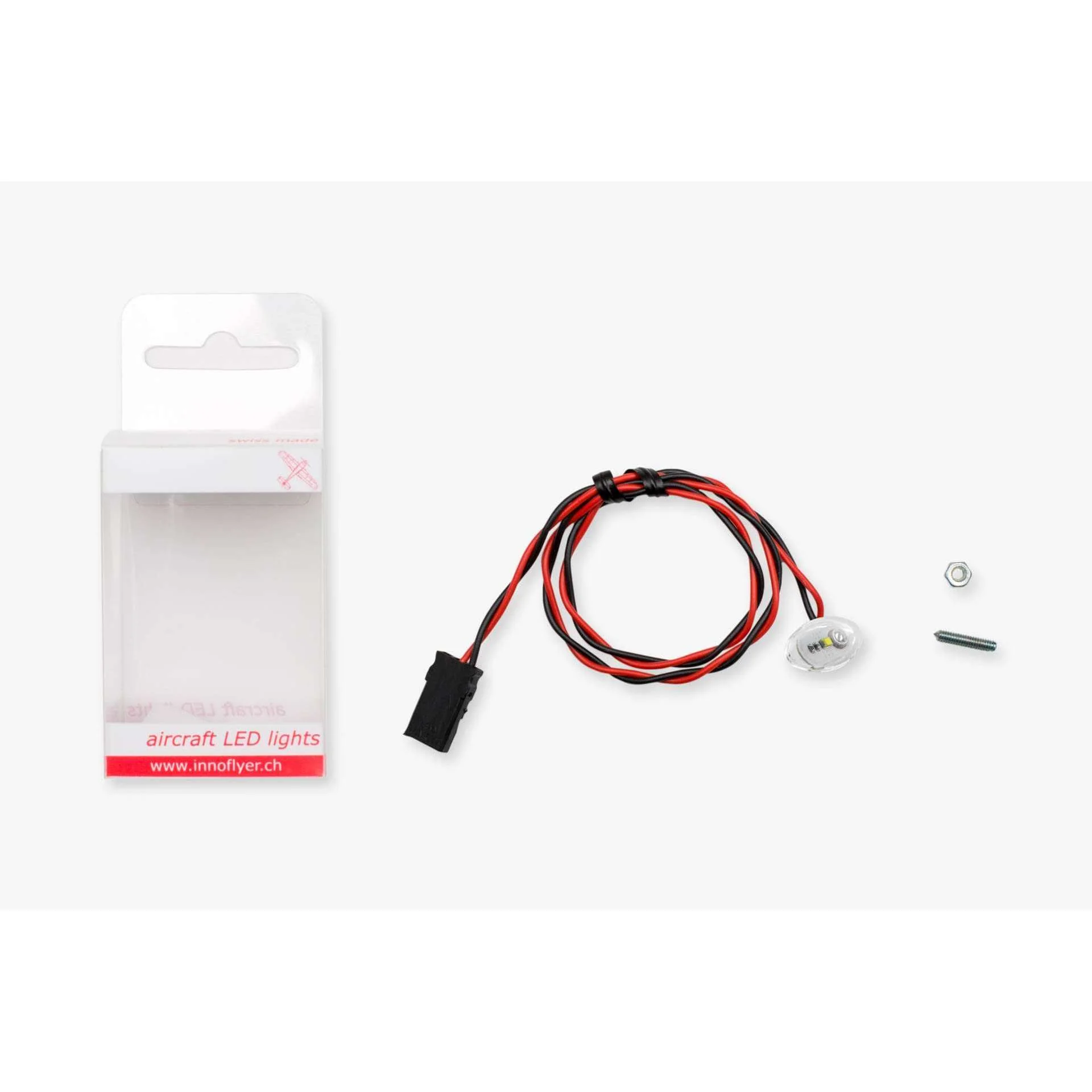

What's on the Box?
1 pc. of the respective variant
Downloads
Software LightCockpit V2.2 for Windows 64bit
Firmware 2.2 for light control Light Driver 5.0
LightCockpit V2.1 for macOS
