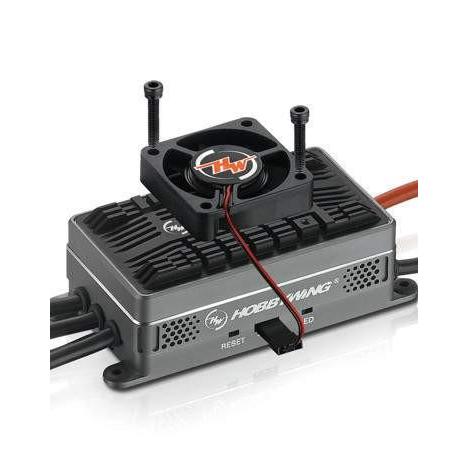

HOBBYWING PLATINUM PRO ESC - 120A V4
HOBBYWING PLATINUM PRO ESC - 120A V4
| Model | Platinum 120A ESC V4 |
| Application | 500-550 class Helis |
| Input Voltage | Â 3S-6S Lipo |
| Cont./Peak Current (10s) | Â 120A/150A (in 10 seconds) |
| (Switch-mode) BEC | 5V-8V Adjustable (Step: 0.1V), 10A/25A Cont./Peak |
| Separate Programming Port | For connecting the LCD program box /WiFi module or Cooling fan |
| Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) | White Throttle Signal Wire/Red & Black and Red&Brown BEC Output Wires/Yellow RPM Signal Transmission Wire |
| Input/Output Wires | 12AWG/12AWG |
| Weight/Size |
107g / 3.77oz / 84.3x38.2x20.4mm |
Â
Â
As a third-party tool, JLog helps bridge the communication between the ESC and transmitter. It can transmit various running data of an ESC to a transmitter in real time. In addition, its data-logging capability can store critical data from each flight to its SD card and allow users to read and analyze those data on PCs via an APP called log-view.
The successful "marriage" between Hobbywing Platinum V4 ESCs and JLog allows users to check various running data of ESCs (on transmitters) and guarantee the flight safety. With the data-logging function, users can analyze those data after flight and get more effective information for the safety of next flight.
The following image shows how to connect a Platinum V4 to a JLog.
Original: $159.99
-70%$159.99
$48.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HOBBYWING PLATINUM PRO ESC - 120A V4
| Model | Platinum 120A ESC V4 |
| Application | 500-550 class Helis |
| Input Voltage | Â 3S-6S Lipo |
| Cont./Peak Current (10s) | Â 120A/150A (in 10 seconds) |
| (Switch-mode) BEC | 5V-8V Adjustable (Step: 0.1V), 10A/25A Cont./Peak |
| Separate Programming Port | For connecting the LCD program box /WiFi module or Cooling fan |
| Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) | White Throttle Signal Wire/Red & Black and Red&Brown BEC Output Wires/Yellow RPM Signal Transmission Wire |
| Input/Output Wires | 12AWG/12AWG |
| Weight/Size |
107g / 3.77oz / 84.3x38.2x20.4mm |
Â
Â
As a third-party tool, JLog helps bridge the communication between the ESC and transmitter. It can transmit various running data of an ESC to a transmitter in real time. In addition, its data-logging capability can store critical data from each flight to its SD card and allow users to read and analyze those data on PCs via an APP called log-view.
The successful "marriage" between Hobbywing Platinum V4 ESCs and JLog allows users to check various running data of ESCs (on transmitters) and guarantee the flight safety. With the data-logging function, users can analyze those data after flight and get more effective information for the safety of next flight.
The following image shows how to connect a Platinum V4 to a JLog.
