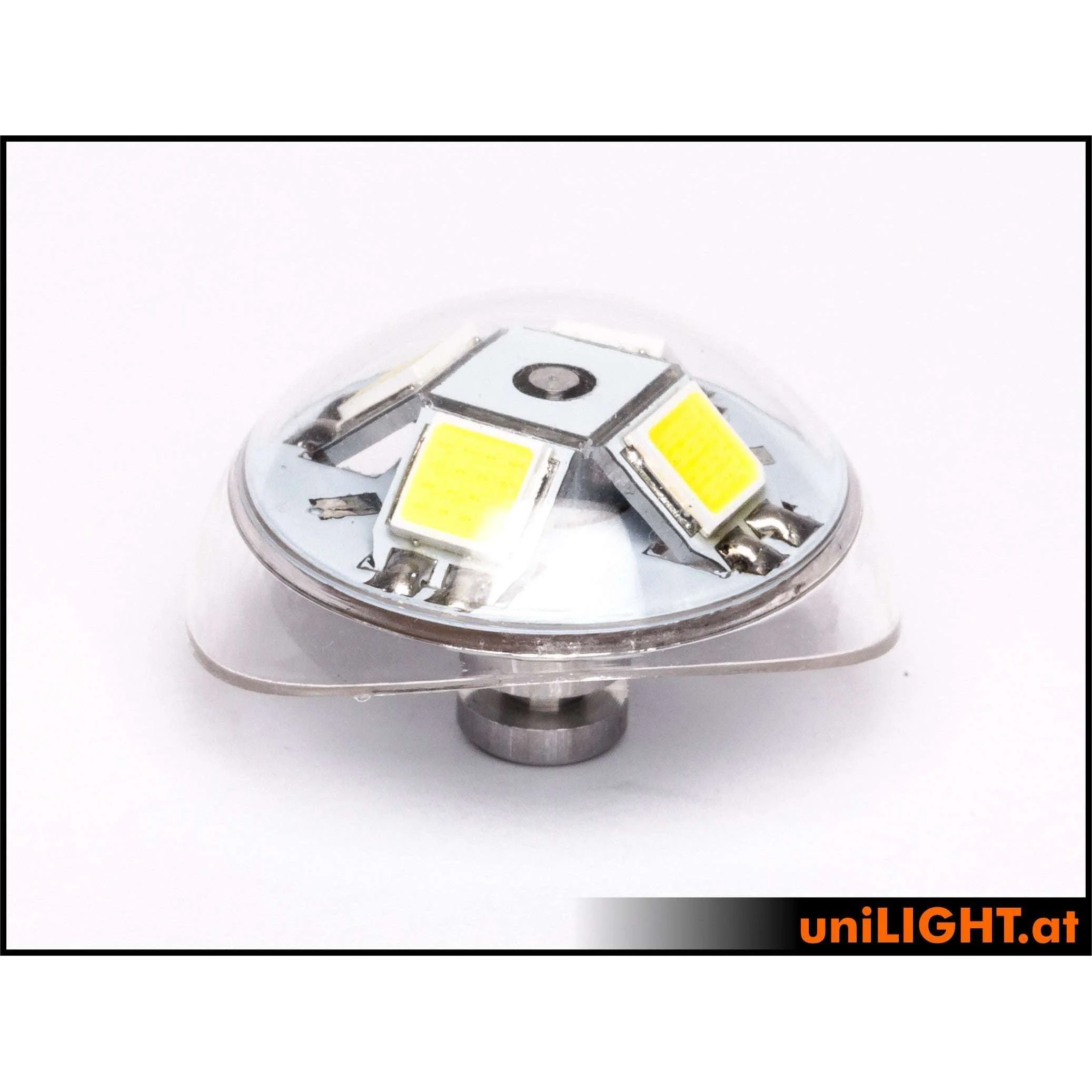

Real hemispheric light in dome shape, real radiation throughout the hemisphere! Dome light in an absolutely novel and flat design to achieve the full beam angle in the half-space (> 2? sr).

Aluminum construction can be operated without further cooling only with short strobe signals, optional heat sink and mounting material included.

Various caps included, the primary cap already has an Molding for direct mounting on a round fuselage and can be further adjusted with a knife or scissors.

Electricity: 24W reference power with x3-Technic, Caution! 2V(2A) or 8V(3A) only available! Beam angle: >180°/360° (>2? sr) Light intensity: ~3000 Lumen WHITE Dimension: D24x8mm Weight: 4g (without cable)  Ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.  The luminaire is ready to use for operation with 2S LiPo (ca.

8V).

With 3S (12V), the enclosed resistor has to be added.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.

These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.

If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
