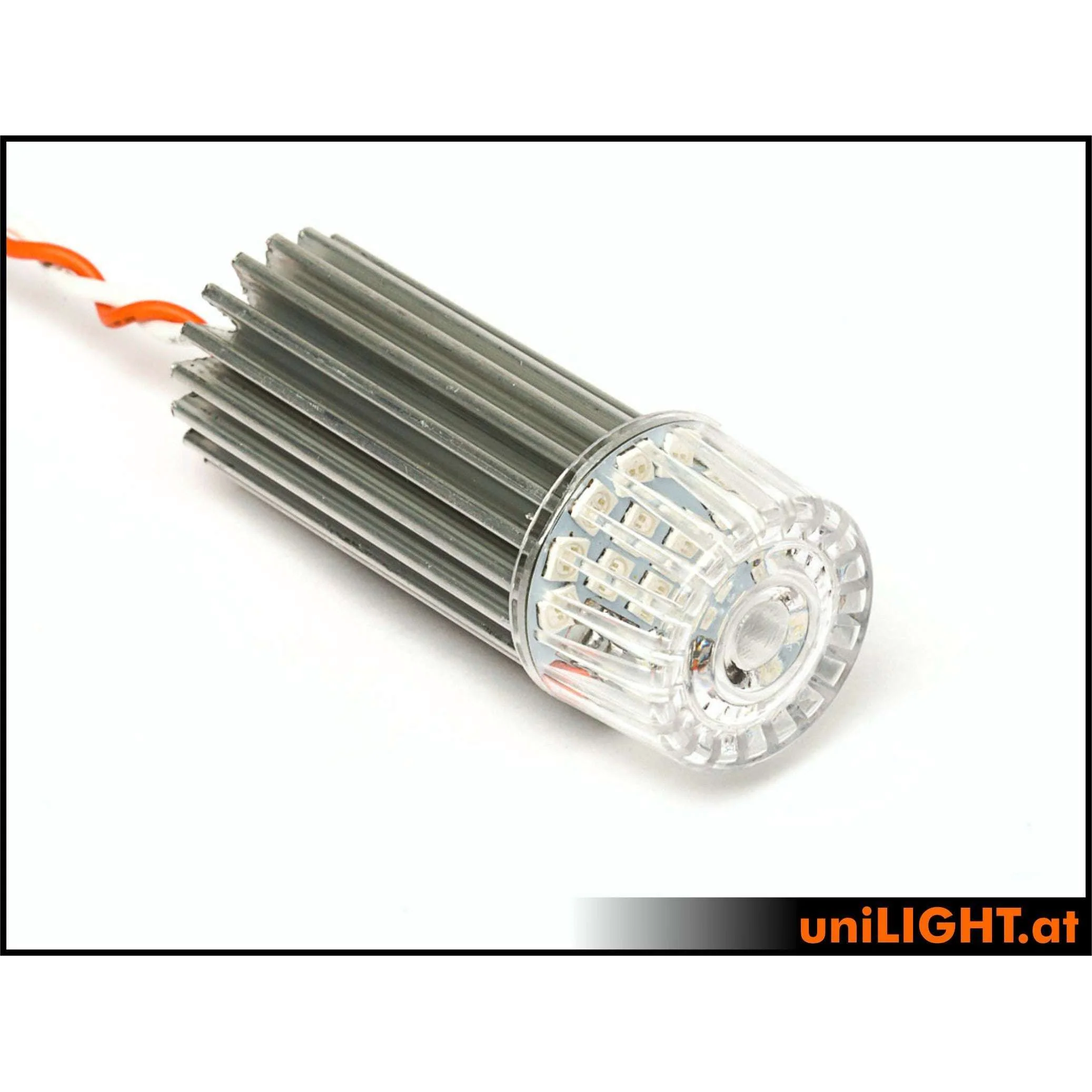

Power Navigation Light with 22mm Diameter and T-Fuse! The strongest position light in the uniLIGHT.at program! Multi-chip design allows extremely good light output with a compact design and low heat loss.

The perfect light for large models with the highest demands.

The new round lights are supplied with a snap-on 22mm cap made of highly transparent polycarbonate.

The faceted cap results in a perfect radiation over the entire horizon.

Without the cap, the installation can be done very easily in margins and prefabricated recesses.

  Electricity: 10W reference power with x2-technology, 8V/12V, 0.8A Beam angle: 180° Light intensity: ~270 Lumen RED Light intensity: ~400 Lumen GREEN Light intensity: ~650 Lumen WHITE Dimension: D22x53mm Weight: 18g (without cable)With 1m silicone connection cable, ready for connection for 8V/2S Lipo.

Already mounted with high quality polycarbonat cap, additional resistor for 12V/3S operation The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.  The luminaire is ready to use for operation with 2S LiPo (ca.

8V).

With 3S (12V), the enclosed resistor has to be added.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.

These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.

If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
