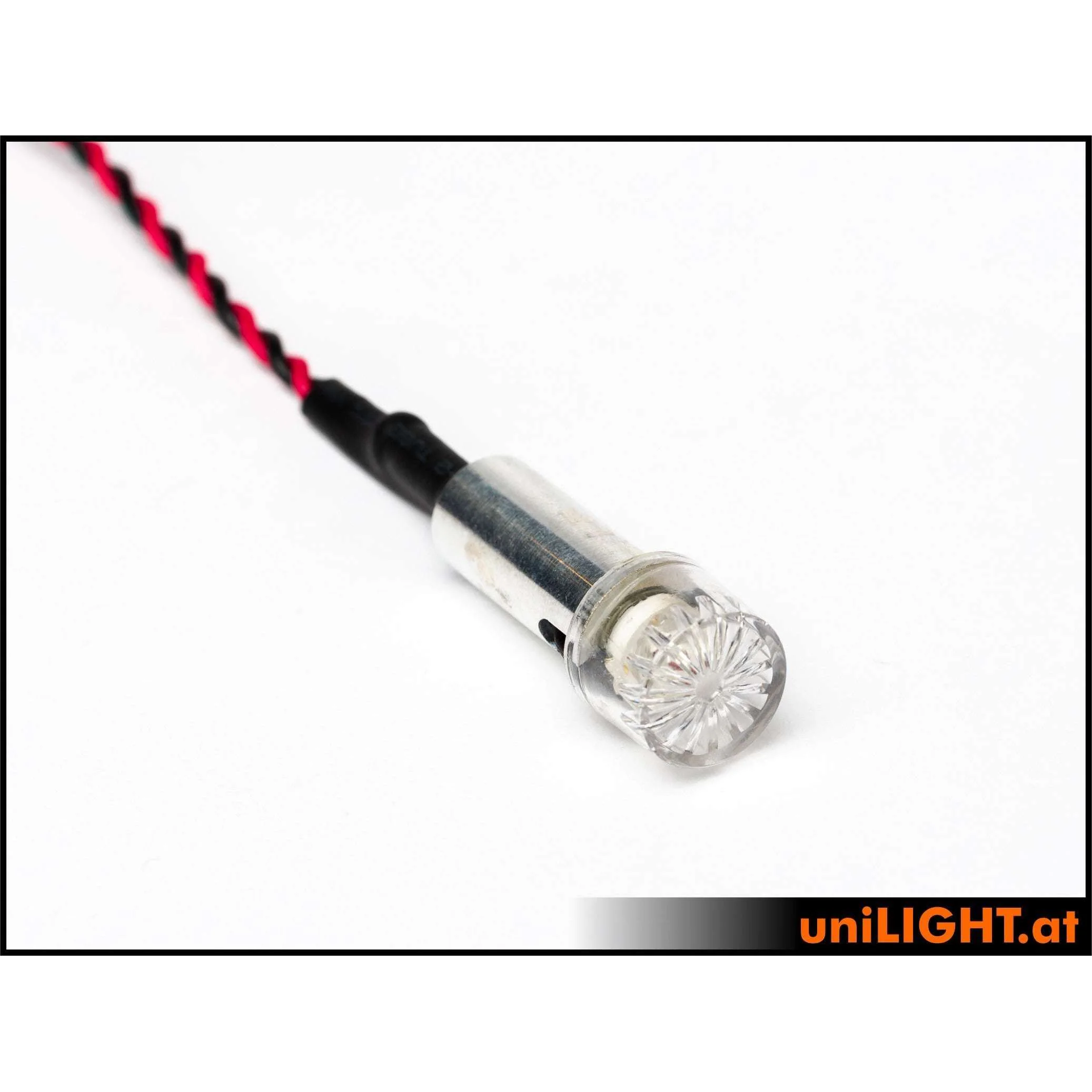

Special version of a round and compact position light with integrated flash   The compact design is ideal for use as a position light with strobe in warbirds or as a white / white end light in civilian airliners Electricity: 1,5Wx2 RED/GREEN and 3,5Wx2 WHITE reference power, 0.1A RED/GREEN, 0.3A WHITE Beam angle: >120° Light intensity: ~50 Lumen RED Light intensity: ~70 Lumen GREEN Light intensity: ~250 Lumen WHITE Dimension cooling pin: D13x37mm Weight: 4g (without cable)Ready to use with 2x0.5m PTFE cable and ready made series resistor for 2S, resistor for 3S enclosed The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.  The luminaire is ready to use for operation with 2S LiPo (ca.

8V).

With 3S (12V), the enclosed resistor has to be added.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.

These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.

If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
