AMP Connector for MULTI SERVO/CONNECTION (06) PIN

These are AMP Connector automotive grade use MIL-spec plugs that have been carefully designed to answer the problem of connecting multiple high torque digital servos, electric gear, and LEDs through one connector.

It features an ultra-high surface copper gold-plated pin system that will sustain 15A continuous at 8V and 20A burst for 5 seconds per pin.

This connector features a gold-plated surface that is 10 times larger than a standard 0.1" pin, with higher quality and thicker gold plating surface, to twice the thickness of regular pins, allowing a very high number of connection/ disconnection cycles and low electrical resistance in all vibration modes.

The crimping tabs are dimensioned for cables from 20 to 24 AWG and were specified to be compatible with a universal ratchet crimping tool (possible soldering required) or a High-Grade professional Pro Crimp tool.

The housings are carbon fiber reinforced PEEK, melting point rated at 350 degrees C.

Complies to MIL-STD-202

Rated for 5000 connection/ disconnection cycles.

Temperature rising@15A per pin: 20c for continuous use at 8V.

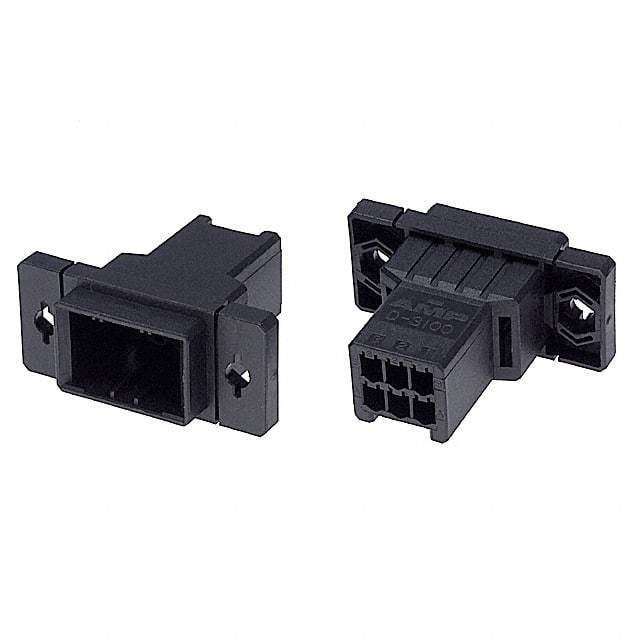

The flange mounting female housing has 2 convenient tabs to fasten it on the side of the fuselage.

The male plug is polarized and clips in position.

PRO TIP

What's in the box:

1x AMP plug housing FEMALE
1x AMP plug housing MALE
6x Pins FEMALE
6x Pins MALE

Each plug set is sold with a male housing, female housing, corresponding number of female pins, and male pins plus one extra pin of each.

A pin extractor tool is also available by clicking on the image below.

178803-3/178289-3

AMP CONNECTORS

AMP Connector for MULTI SERVO/CONNECTION (16) PIN

AMP Connector for MULTI SERVO/CONNECTION (20) PIN

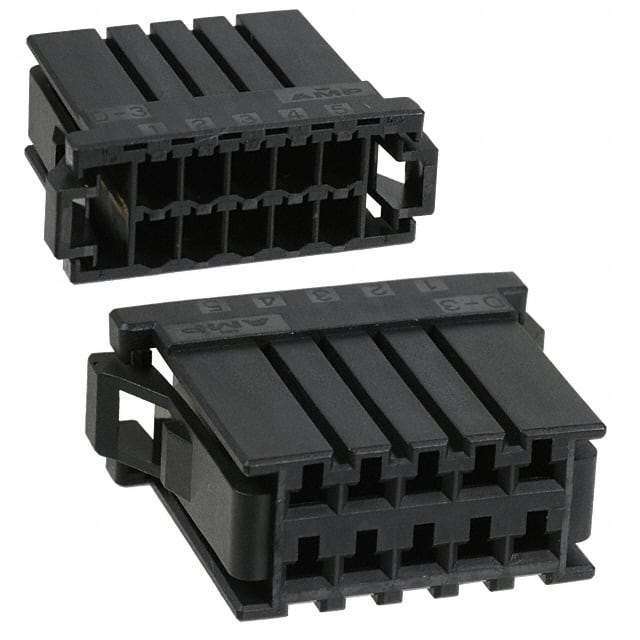

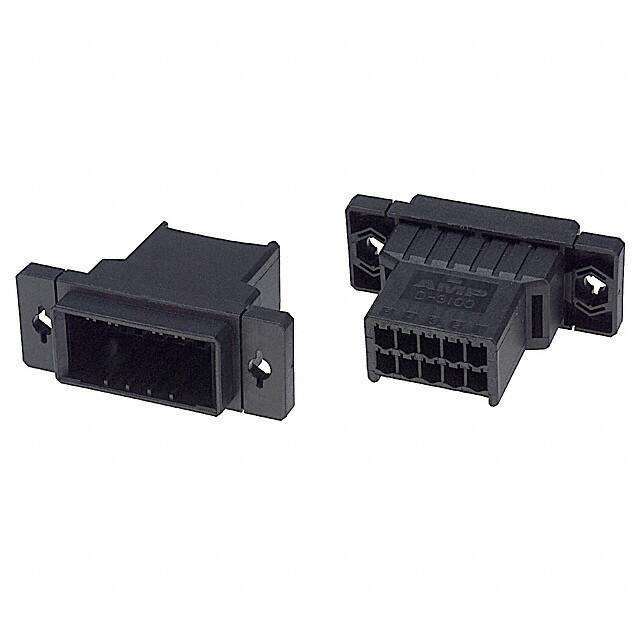

AMP Connector for MULTI SERVO/CONNECTION (10) PIN

AMP Connector for MULTI SERVO/CONNECTION (06) PIN

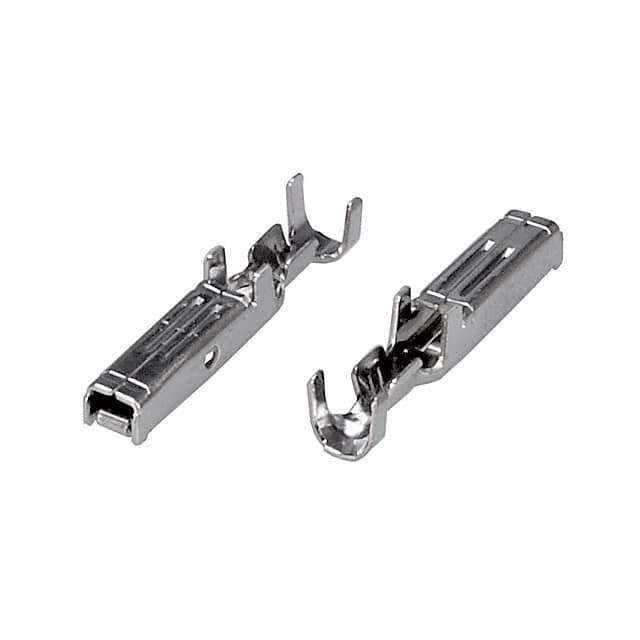

AMP PIN 20-24 AWG CRIMP GOLD 10X (Female)

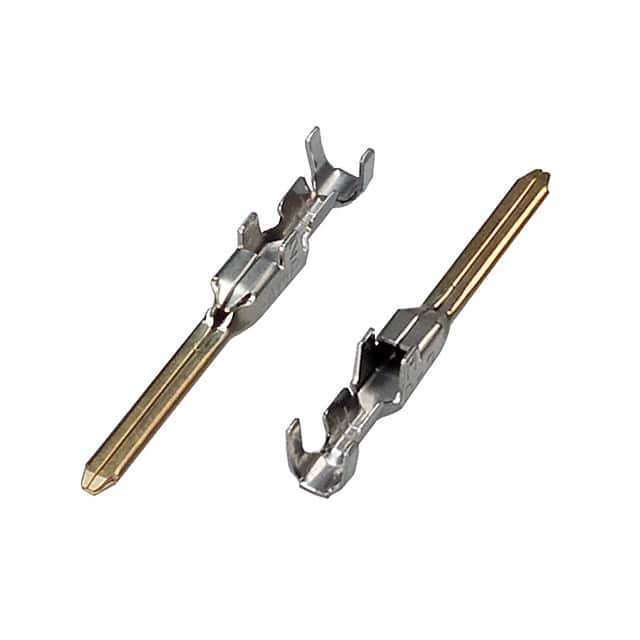

AMP PIN 20-24 AWG CRIMP GOLD 10X (Male)
