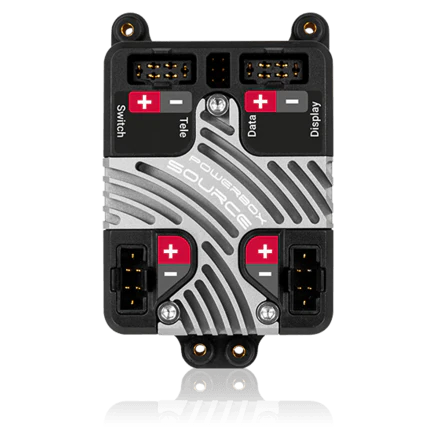

PowerBox Source

The PowerBox Source is the logical further development of the successful BaseLog . Customer requirements and requirements for modern telemetry systems were incorporated.

Features

High performance

Optimized cooling

Small size

Optionally with OLED 128x64 pixels

4 different output voltages

All battery types usable

Operation via a switch, BlueCom or USB interface

Supports 5 different telemetry systems: CORE P²BUS, Jeti EX-Bus, Futaba S.BUS2, Multiplex M-Link, Graupner Hott

Redundant controller design

Suppression of servo return currents

Protection against electrostatic discharge

Built-in controller monitoring

Updatable with the USB interface or the BlueCom adapter

Technical Data

Operating voltage	4,0V - 9,0V
Power supply	2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd / NiMH

Power consumption operation	85mA
Power consumption Standby	10uA
Current capacity	Tip 2x20A
Dropout voltage	0.3V
Output voltage	5.9V / 7.4V / 7.8V / 8.4V
Display	OLED 128 x 64 pixels (optional)

Supported telemetry systems	PowerBox, Jeti, Futaba, Graupner, Multiplex, JR
Dimensions	54 x 88 x 23 mm
Weight	77 g
Weight sensor switch	15 g
Temperature range	-30 ° C to + 85 ° C

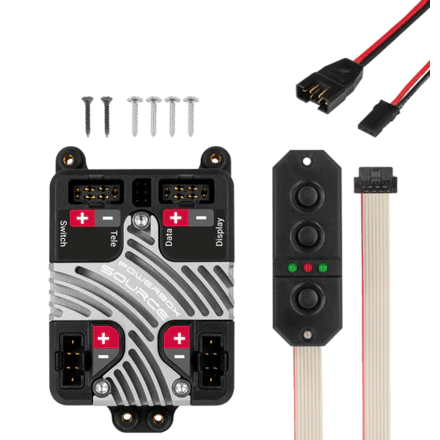

Set contents

PowerBox Source
sensor switch
3 power patch cables (1x MPX / MPX and 2x MPX / JR)
4 rubber grommets and brass sleeves, pre-assembled
4 fixing screws
Operating instructions in English and German

Product description

The PowerBox Source is the logical further development of the successful BaseLog . Customer requirements and requirements for modern telemetry systems were incorporated. The size could be reduced by optimizing the cooling surfaces. Thus, the PowerBox Source can also be used for small models with high power requirements. The power reserves of the small bundle of energy are enormous and are in no way inferior to the larger turnout systems!

A small O-LED display can be connected as an option - so you have all battery data even with concealed installation always in view. Even without a display, the PowerBox Source can be used in full functionality: the Data connection allows all settings either with the smartphone and the BlueCom adapter or our USB interface with the laptop or PC.

Especially CORE pilots can operate the PowerBox Source completely from the transmitter without any accessories!

All relevant data are, according to the prior art, transmitted via the telemetry system to the transmitter. In addition to the CORE telemetry, the PowerBox Source can also transmit the telemetry data to Jeti, Graupner, Multiplex and Futaba transmitters. Incidentally, Futaba will no longer need an additional teleconverter.

The PowerBox Source can be set to four different output voltages: 5.9V - 7.4V - 7.8V and without regulator, so that the battery voltage is switched through with little loss. The MPX inputs and outputs are equipped with locking clips or tabs to secure the connectors against heavy slipping.

Downloads

operation manual

PowerBox Source (PDF)

Hide additional language variants

english

CLEARANCE & SALE

Price

Collections

Tail Boom DNRS

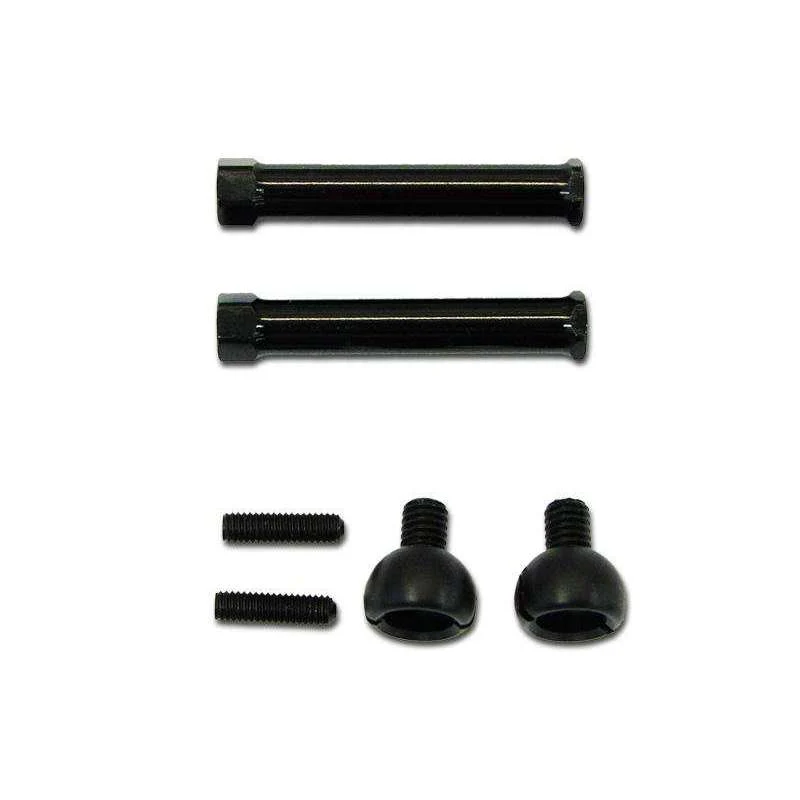

SOXOS Canopy Pin rear DNRS

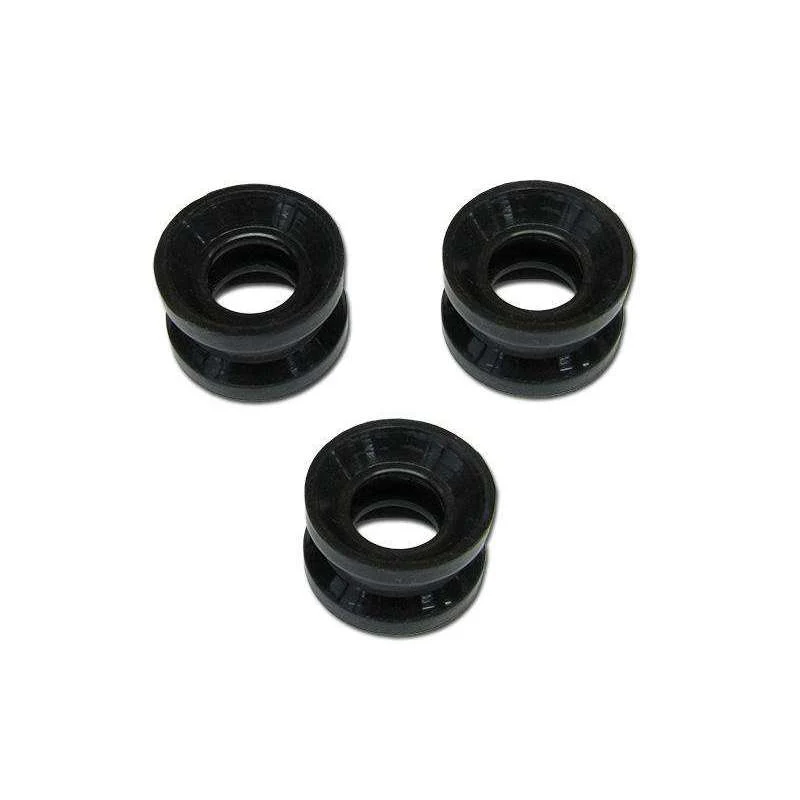

Rubber Bearing Holder DNRS

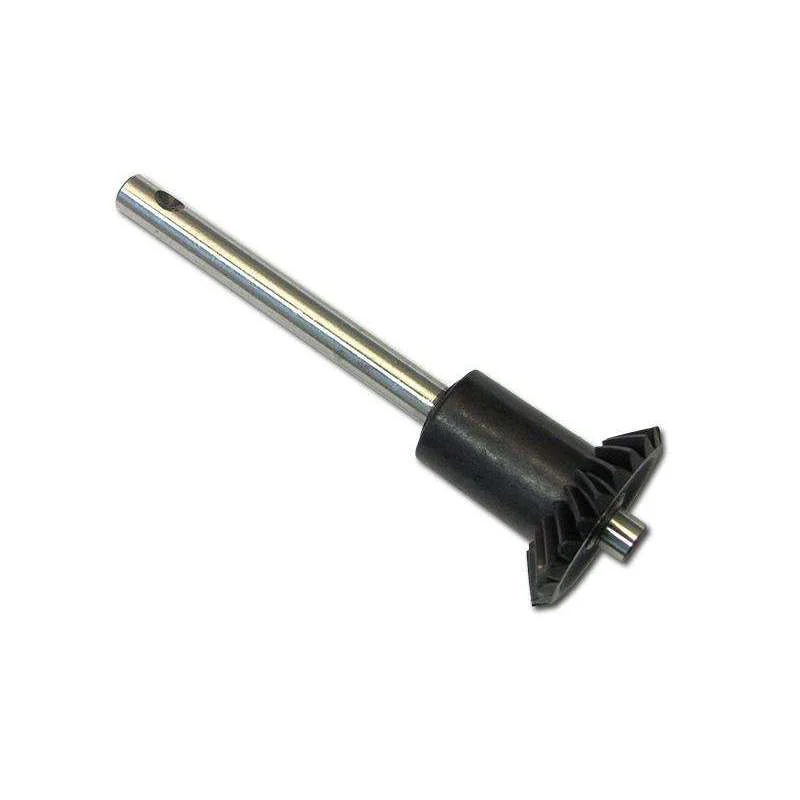

Tail Shaft With Bevel Gear DNRS

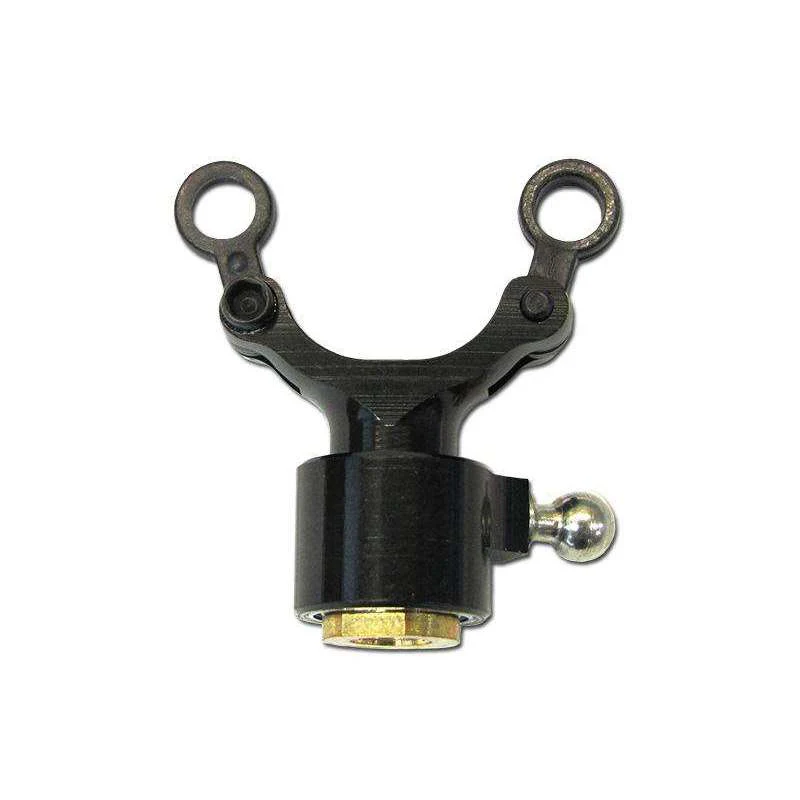

Tail Pitch Assembly DNRS

Tail Drive Shaft DNRS

PowerBox Source DNRS

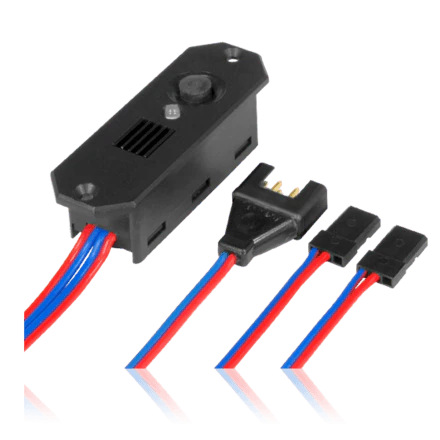

PowerBox Digiswitch
